48DV

ES-9313 Rev.13

Specifications subject to change without notice.

P. 2 / 6

INPUT & OUTPUT

■INPUT

•DC Current: 0 – 50mA DC; input resistor incorpo-

rated (2W)

Minimum span: 1mA

Input resistance

Input

Input Resistance

4 – 20mA

: 10 (Ω)

2 – 10mA

: 20

1 – 5mA

: 39

0 – 20mA

: 10

0 – 16mA

: 12

0 – 10mA

: 20

0 – 1mA

: 200

10 – 50mA

: 5.1

•DC Voltage: 0 – 10V DC

Minimum span: 1V

Input resistance: 1MΩ

■ALARM OUTPUT

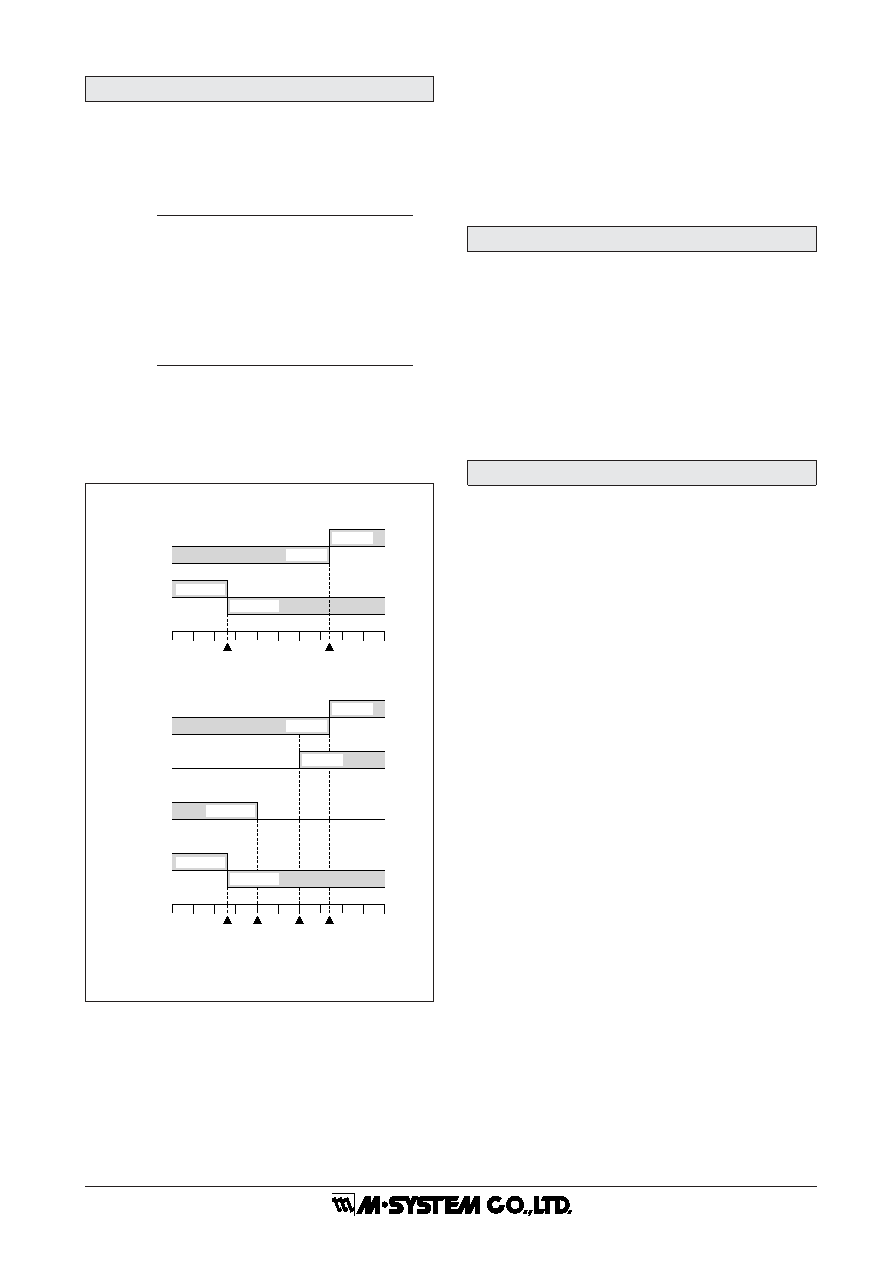

Alarm Trip Operation Terminal No. in parentheses

050

100

Input

(%)

Lo Setpoint

Hi Setpoint

H Output

(8–10)ON

L Output

(3–5)ON

(3–4)ON

(9–10)ON

•Output Code : 2

050

100

Input

(%)

Setp.

HH Output

(7–10)ON

LL Output

(3–5)ON

(3–4)ON

H Output

(3–6)ON

(8–10)ON

L Output

(9–10)ON

Setp.

•Output Code : 4

Trip Operation in Power Failure

: terminals 3 – 5, 9 – 10 turn ON

•Relay Contact: 125V AC @0.5A (cosø=1)

30V DC @2A (resistive load)

electrical life ≥5 × 105 cycles (rate 30/min.)

Maximum switching voltage: 250V AC or 220V DC

Maximum switching power: 125VA or 60W

Minimum load: 10mV DC @10µA

Mechanical life: ≥108 cycles

INSTALLATION

Power input

AC:

operational voltage range 85 – 132V or

170 – 264V, 47 – 63 Hz, approx. 7VA

DC:

operational voltage range 24V ±15%,

approx. 6W (ripple 10% p-p max.)

Operating temperature: 0 to 45°C (32 to 113°F)

Operating humidity: 40 to 80% RH (non-condensing)

Mounting: panel flush mounting

Dimensions: W41×H144×D164 mm (1.61"×5.67"×6.46")

Weight:

420 g (0.93 lbs)

PERFORMANCE in percentage of span

Accuracy

Bargraph: ±1% ±1 digit

Digital meter: ±0.5% ±1 digit

Setpoint accuracy

Bargraph: ±1%

Digital meter: ±0.5%

Response time: 0.5 seconds

Insulation resistance: ≥10MΩ with 500V DC

(input to output to power)

Dielectric strength: 1500V AC @1 minute

(input to power or ground)

1000V AC @1 minute (power to ground,

output to input or power or ground)
