MODEL: JARP2

JARP2 SPECIFICATIONS

ES-1570 Rev.6 Page 4/4

http://www.m-system.co.jp/

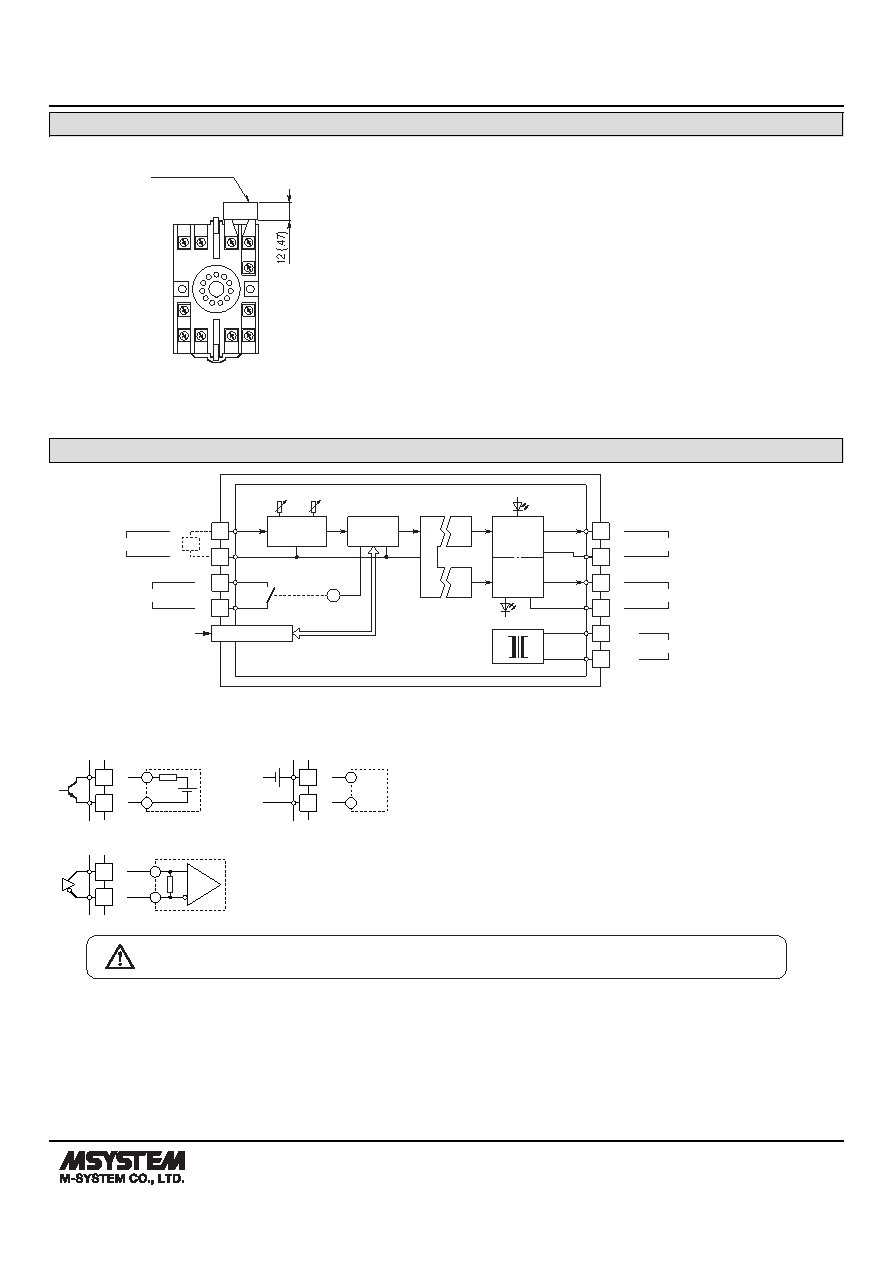

TERMINAL ASSIGNMENTS unit: mm (inch)

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

–

Isolation

Base Socket

*Input shunt resistor attached for current input.

INPUT

Volt. / Freq.

Converter

Out. Driver

–

U(+)

V(–)

POWER

Computation

A OUTPUT

–

B OUTPUT

SERIAL TRANSMISSION LINE

PU-2x

MODULAR JACK

–

ALARM OUTPUT

■ Voltage Pulse

OUT.

MON.

OUT.

MON.

■ Open Collector

Output Connection Examples

■ RS-422 Line Driver Pulse

–
