SPI Block Write Mode

Data can be written to the SPI registers using the block write mode where the register address automatically increments and data for

consecutive registers can be written without sending new address bits. Data writing can be continued indefinitely until CS is raised,

ending the transaction (see Figure 5).

SDIO

SCLK

CS

WRITE

DON’T CARE

DON’T CARE

DON’T CARE

DON’T CARE

FIRST REGISTER ADDRESS

FIRST REGISTER DATA

(n + FIRST REGISTER) DATA

A14

A13

A1

A0

D7

D6

D1

D0

D7

D6

D1

D0

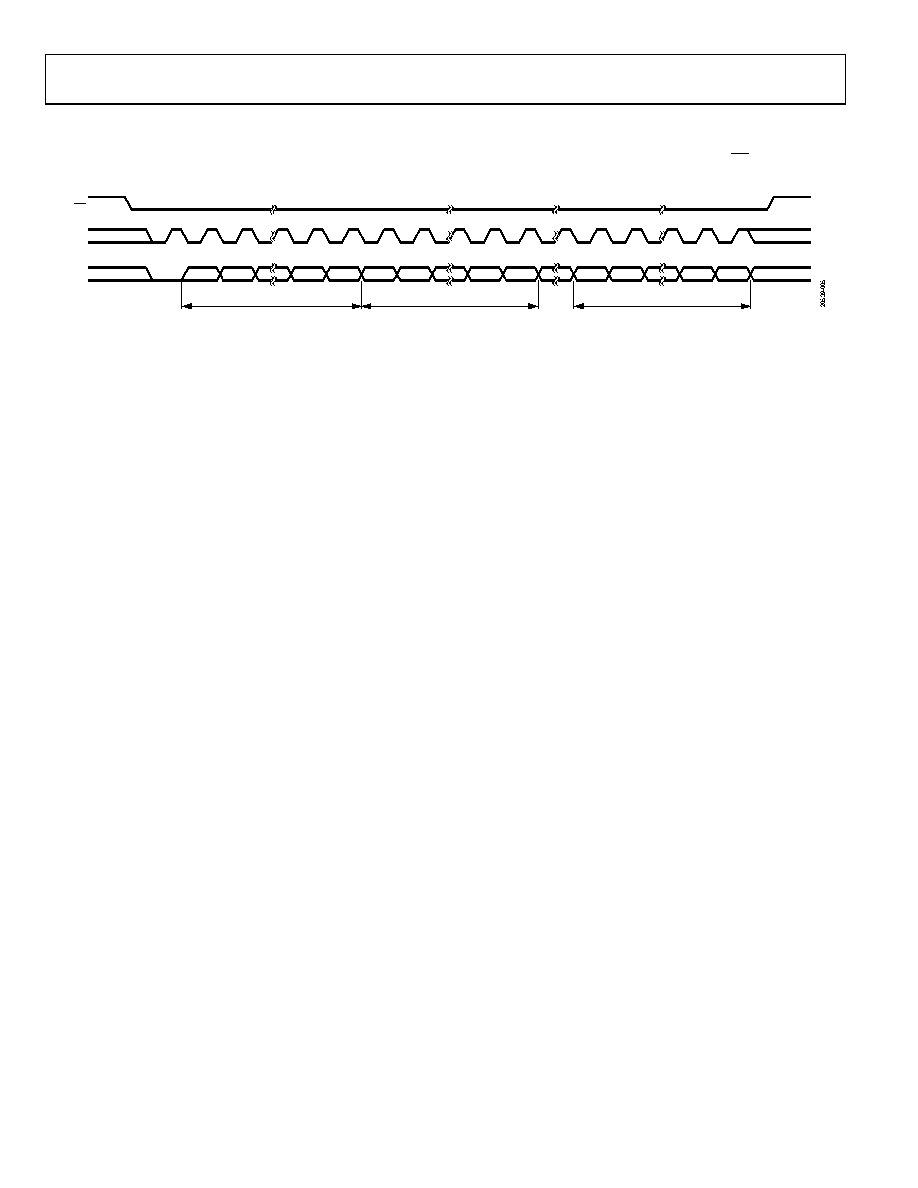

Figure 5. SPI Block Write
