ADAR2001ACCZ-R7 Datasheet(PDF) 12 Page - Analog Devices

No. de pieza ADAR2001ACCZ-R7
Descripción Electrónicos  10 GHz to 40 GHz, 1:4 Channel, 4횞 Frequency Multiplier/Filter
PDF  39 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  AD [Analog Devices]
Página de inicio  http://www.analog.com
Logo AD - Analog Devices

ADAR2001ACCZ-R7 Datasheet(HTML) 12 Page - Analog Devices

Back Button ADAR2001ACCZ-R7 Datasheet HTML 8Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 9Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 10Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 11Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 12Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 13Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 14Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 15Page - Analog Devices ADAR2001ACCZ-R7 Datasheet HTML 16Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 39 page
background image
ADAR2001
Data Sheet
Rev. 0 | Page 12 of 39
5
–5
10
40
RF OUTPUT FREQUENCY (GHz)
12 14 16 18 20 22 24 26 28 30 32 34 36 38
–4
–3
–2
–1
0
1
2
3
4
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4

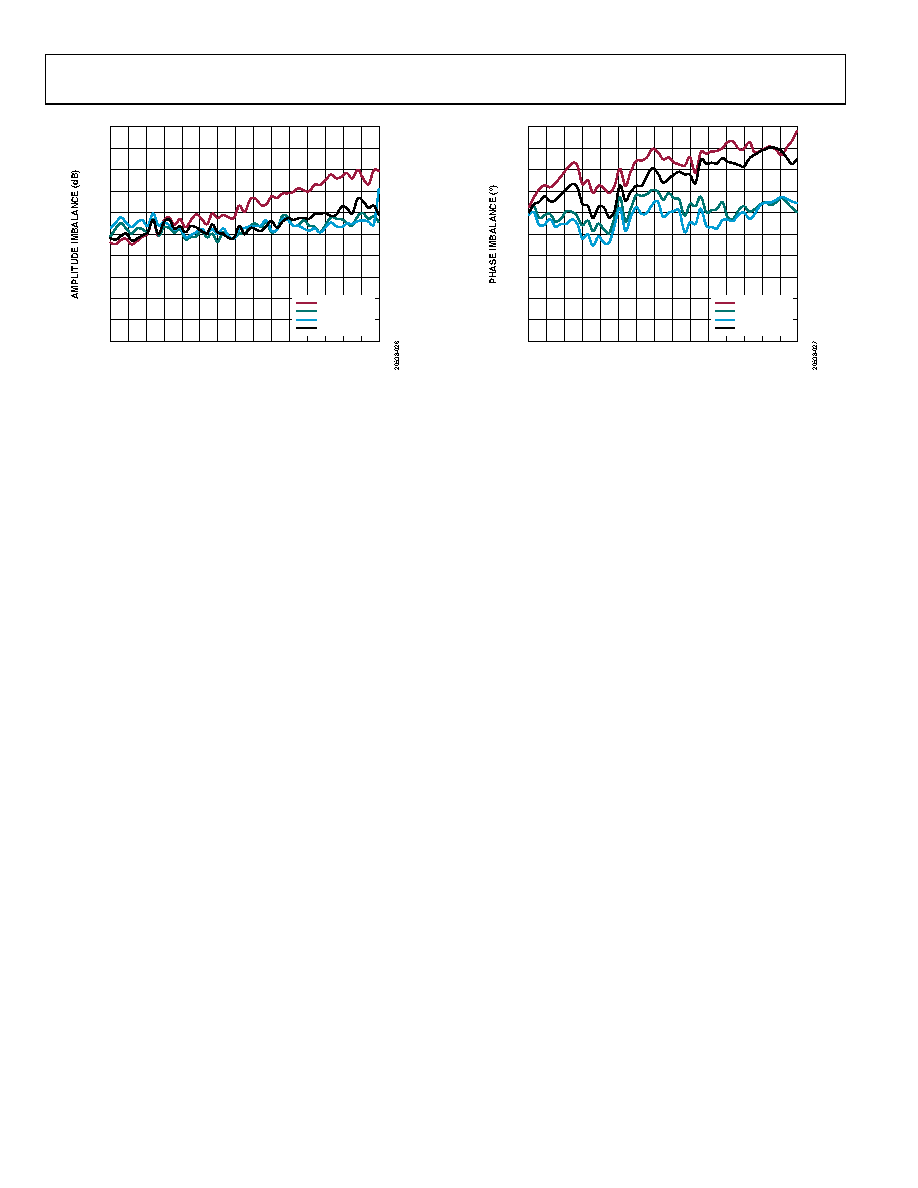

Figure 25. Amplitude Imbalance vs. RF Output Frequency
25
–25
10
40
RF OUTPUT FREQUENCY (GHz)
12 14 16 18 20 22 24 26 28 30 32 34 36 38
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
–20
–15
–10
–5
0
5
10
15
20
Figure 26. Phase Imbalance vs. RF Output Frequency
