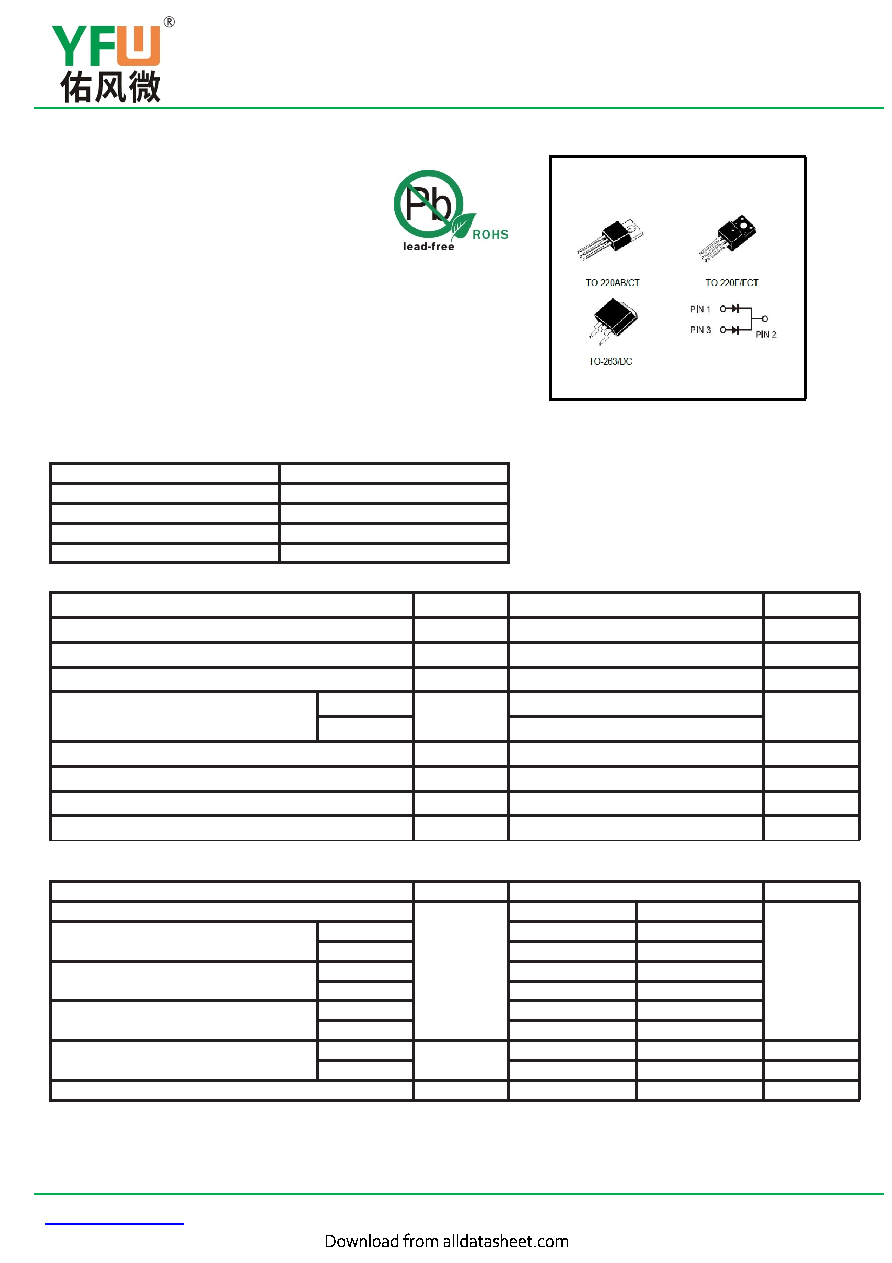

1 / 4 page  0.10 MUR2020CT-FCT-DC 1 / 4 www.yfwdiode.com Dongguan YFW Electronics Co, Ltd. ULTRAFST RECOVERY RECTIFIERS Reverse Voltage -200 V Forward Current - 20 A FEATURES High speed switching capability High current capability High forward surge capability Low power losses，High efficiency For use in low voltage, high frequency inverters Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA Case: TO-220AB TO-220F TO-263/DC Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Io 2*10A VRRM 200V IFSM 180A VF 0.81V TJ Max 150°C Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Parameter Symbols Value Units Maximum Repetitive Peak Reverse Voltage VRRM 200 V Maximum RMS voltage VRMS 200 V Maximum DC Blocking Voltage VDC 200 V Per Leg 10 Maximum Average Forward Rectified Current Total Io 20 A Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM 180 A Operating Temperature Range TJ 150 °C Storage Temperature Range TSTG -40 ~ +150 °C Typical Thermal Resistance (Note1) TO-220AB TO-263 TO-220F RθJA/ RθJC 2/4 °C/W Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols Value Units Forward Voltage Drop(Note2) Typ Max TA=25°C 0.77 - at IF=2A TA=125°C 0.63 - TA=25°C 0.80 - at IF=3A TA=125°C 0.67 - TA=25°C 0.93 0.97 at IF=10A TA=125°C VF 0.81 - V TA=25°C 1 uA Maximum Reverse Current at VR=200V TA=125°C IR 5 - uA Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A TRR - 35 nS Note2:Pulse test: 300 μs pulse width, 1 % duty cycle |
