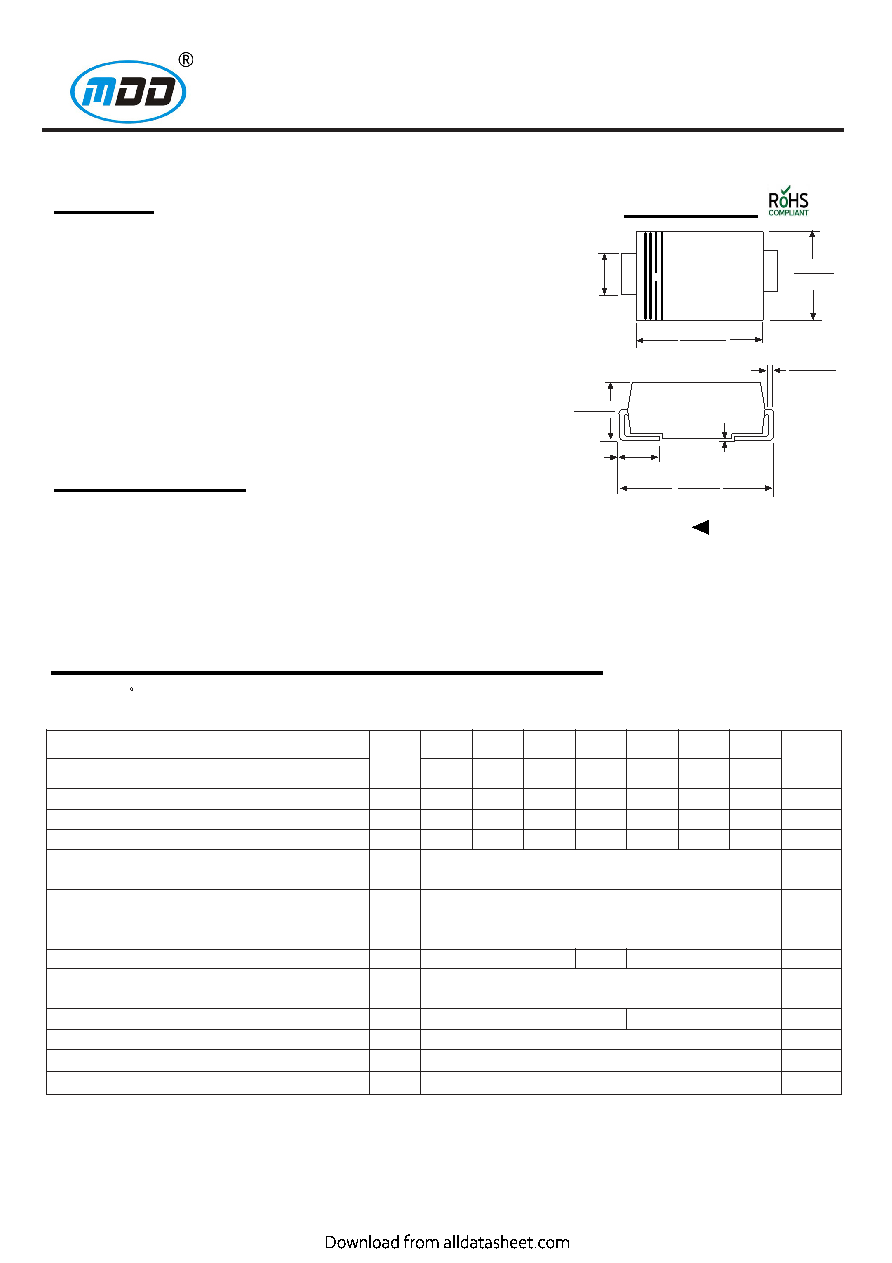

1 / 3 page  SURFACE MOUNT ULTRA FAST RECTIFIER DN:T19719A0 https://www.microdiode.com Rev:2019A0 Page :1 Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere US3AB THRU US3MB Mechanical Data Features The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Ultra fast switching for high efficiency Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed 250 °C/10 seconds at terminals Case : JEDEC DO-214AA/SMB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.003 ounce, 0.095 grams Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Maximum Ratings And Electrical Characteristics Parameter SYMBOLS US 3AB US3BB US3DB US3GB US3JB US3KB US3MB UNITS Marking Code MDD US 3AB MDD US 3BB MDD US 3DB MDD US 3GB MDD US 3JB MDD US 3KB MDD US 3MB Maximum repetitive peak reverse voltage VRMM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current at TL=55℃ I(AV) 3.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 90 A Maximum instantaneous forward voltage at 3.0A VF 1.0 1.30 1.6 8 V Maximum DC reverse current TA=25℃ at rated DCblocking voltage TA=125℃ IR 5.0 100.0 μA Maximum reverse recovery time (NOTE 1) trr 50 75 ns Typical junction capacitance (NOTE 2) CJ 15.0 pF Typical thermal resistance (NOTE 3) RJA 45.0 ℃/ W Operating junction and storage temperature range TJ,TSTG -55 to +150 ℃ Note: 1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.P.C.B. mounted with 2.0x2.0”(5.0x5.0cm) copper pad areas . 3.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 4.The typical data above is for reference only. Dimensions in inches and (millimeters) DO-214AA/SMB 0.060(1.52) 0.030(0.76) 0.220(5.59) 0.200(5.08) 0.012(0.305) 0.006(0.152) 0.008(0.203)MAX. 0.096(2.44) 0.084(2.13) 0.08 6 (2.20) 0.07 1 (1.80) 0.18 5(4.70) 0.160(4.06) 0.155(3.94) 0.130(3.30) |
