Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested

to approve our product specification or to transact the approval sheet for product specification, before your ordering.

P61E7.pdf 01.10.17

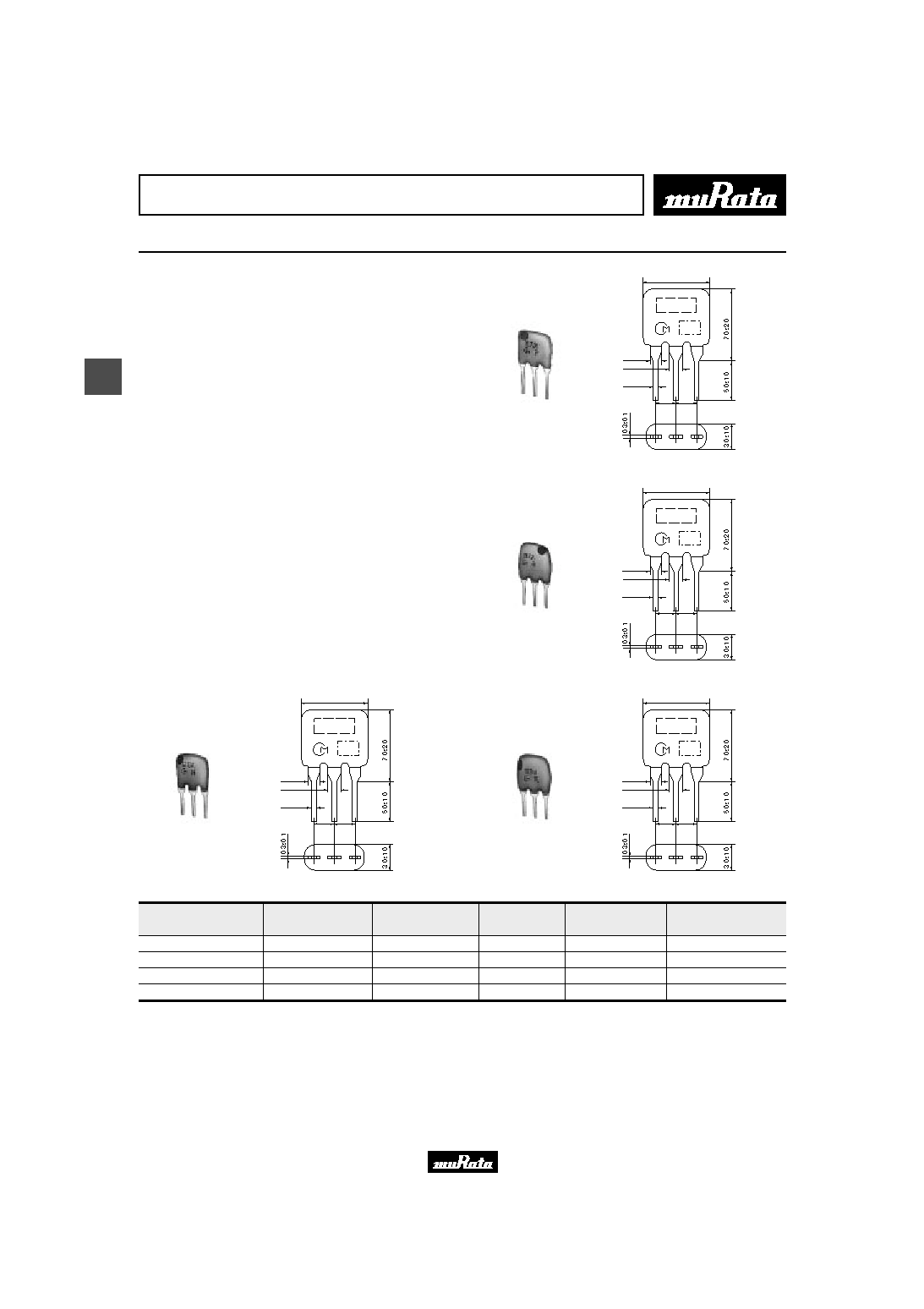

Ceramic Filters (CERAFILr) for FM Receivers

CERAFILr Low-loss Type

SFELA10M7 series for FM-receivers are monolithic type

ceramic filters which use the energy trapped thickness

vibration-mode of the piezoelectric ceramic.

s Features

1. Insertion loss is 1 to 1.5dB lower than

conventional products. This types are useful for

elevating the sensitivity of sets.

2. Small dispersion and stable characteristics.

3. Excellent shape factor of frequency response.

4. Good waveform symmetry.

(1)

(2)

(3)

7.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELA_JAA0-B0

(1)

(2)

(3)

7.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELA_HAA0-B0

(1)

(2)

(3)

7.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELA_GAA0-B0

(1)

(2)

(3)

7.0

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

M A R K I N G

E I A J

C O D E

(in mm)

(1) : Input

(2) : Ground

(3) : Output

SFELA_FAA0-B0

Part Number

Center Frequency (fo)

(MHz)

3dB Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Spurious Attenuation

(dB)

SFELA10M7JAA0-B0

10.700

±30kHz

within150

±40kHz

360 max.

within4.5

±2.0dB

35 min.

SFELA10M7HAA0-B0

10.700

±30kHz

within180

±40kHz

470 max.

within3.5

±1.5dB

35 min.

SFELA10M7GAA0-B0

10.700

±30kHz

within230

±50kHz

520 max.

within3.0

±2.0dB

35 min.

SFELA10M7FAA0-B0

10.700

±30kHz

within280

±50kHz

590 max.

within2.5

±2.0dB

30 min.

Area of Attenuation : [within 20dB]

Area of Spurious Attenuation : [within 9MHz to 12MHz]

Center frequency(fo) defined by the center of 3dB bandwidth.
