Speaker

ADS02008MR-R

J.A.F.

B.R.

E.P.

10/15/2008

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/21/2005

Date

9/21/2005

Date

9/21/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

ADS02008MR-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

9/21/2005

ADDED ROHS NOTE #3

11/02/2005

B.R.

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

10/15/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.08

MAX INPUT POWER

0.2

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.08W/0.1M

(AT 1.0, 1.2, 1.5, 2.0 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

RESONANT FREQUENCY

750 ± 20%

FREQUENCY RANGE

750 ~ 5,000

HOUSING MATERIAL

ABS

CONE MATERIAL

SILVER POLYESTER

MAGNET MATERIAL

Nd-Fe-B

OPERATING TEMPERATURE

-20 ~ +55

°C

WEIGHT

2.3

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n9.4

n19.9

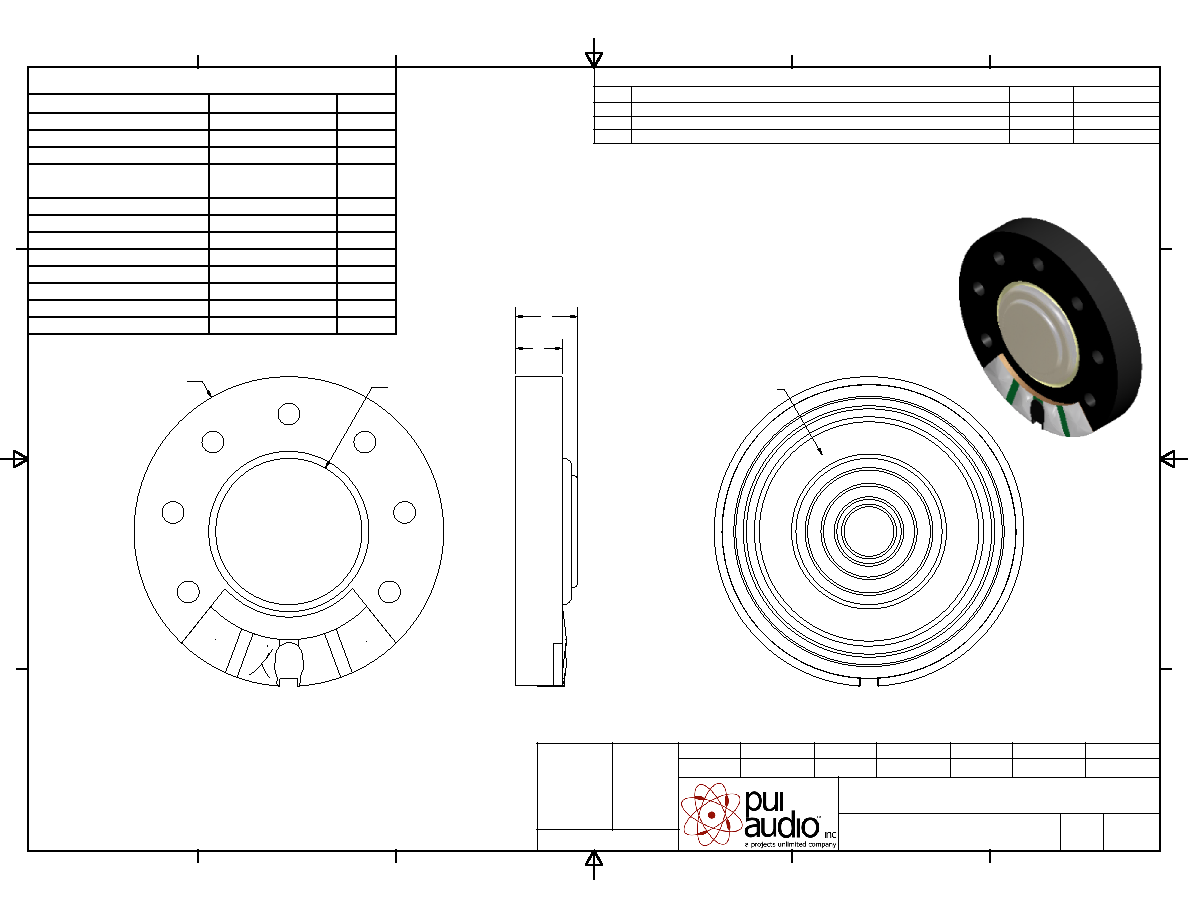

SILVER POLYESTER CONE
