Surface Mount Superfast Recovery Rectifier

Trustworthy electronic circuit protection expert

ES3AB THRU ES3JB

www.yint.com.cn

2

Rev:19.3

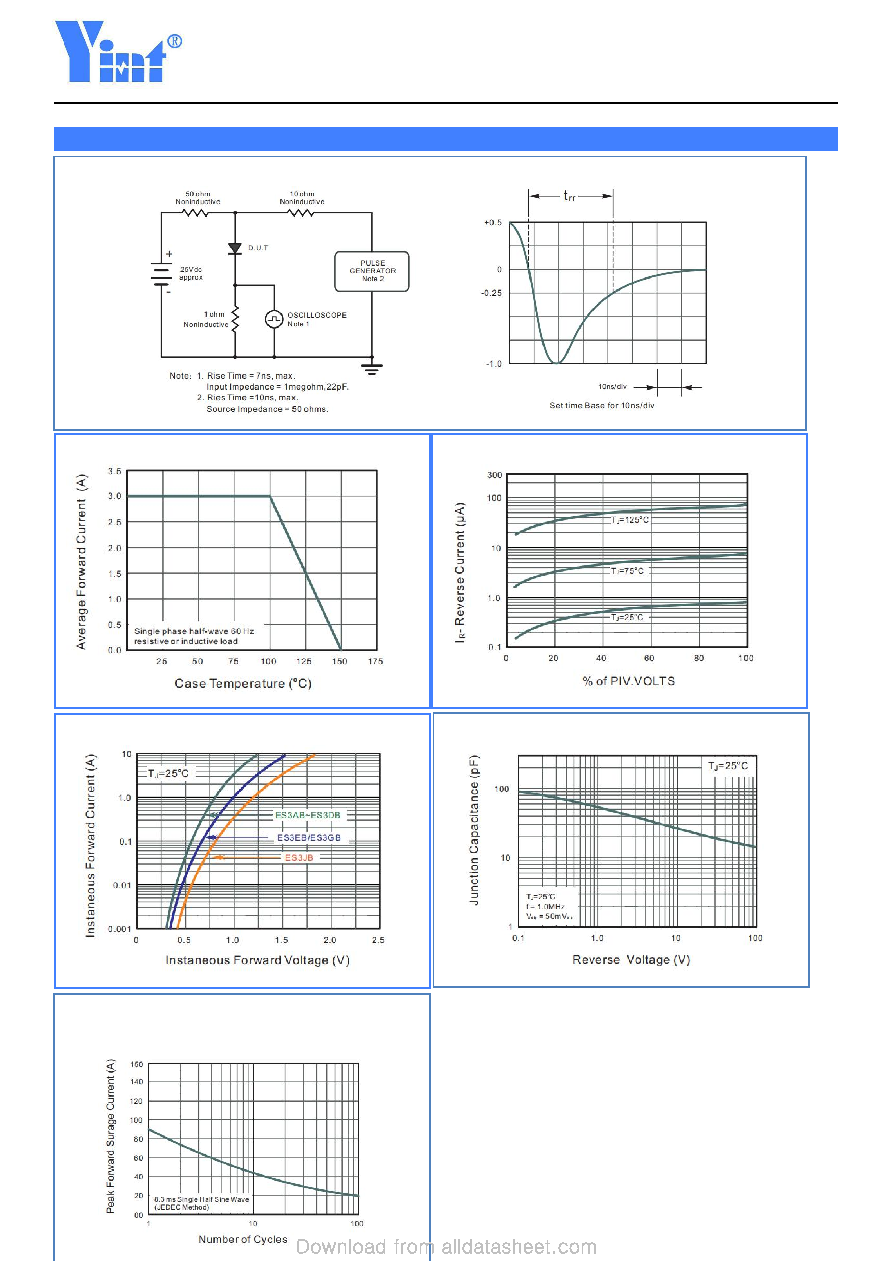

Rating And Characteristic Curves

Fig.2 Maximum Average Forward Current Rating

Fig.3 Typical Reverse Characteristics

Fig.4 Typical Forward Characteristics

Fig.5 Typical Junction Capacitance

Fig.6 Maximum Non-Repetitive Peak

Forward Surage Current

Fig.1 Reverse Recovery Time Characteristic And Test Circuit Diagram
