96D-R5 datasheet(3/4 Pages) YUANDEAN

3 / 4 page

General Specifications

Parameters

Conditions

Min

Typ

Max

Units

Isolation Resistance

500Vdc

1000

MΩ

Switching

Frequency

300

KHz

Isolation

Capacitance

2200

Case material

Nickel coated copper with no-conductive base

Potting material

Epoxy (UL94-V0)

Isolation Voltage

For 10 seconds

1600

VDC

Design meets

safety

IEC60950-1, UL60950-1, EN60950-1

Dimensions

-R5NL

50.8X 25.4 X 10.6

-R5HSNL

50.8X 25.4 X 15.3

Weight

36.5

MTBF (Note 1)

BELLCORE-TR-NWT-000332

3.163 x 106

hrs

MIL-HDBK-217F

4.347 x 105

hrs

96D-R5 SERIES

YUAN DEAN SCIENTIFIC CO.,LTD

Rev:1.0 2018/12/17

Environmental Specifications

Parameters

Conditions

Min

Typ

Max

Units

Operating

Temperature

-40

℃

Maximum case

temperature

105

℃

Storage

Temperature

-55

125

℃

Thermal impedance

@20LFM

Convection

ºC/Watt

Convection with heat-sink

ºC/Watt

Thermal shock

MIL-STD-810F

Vibration

MIL-STD-810F

Relative humidity

5% to 95% RH

EMC Characteristics

Parameters

Conditions

Min

Typ

Max

Units

EMI

EN55022

Class A

ESD

EN61000-4-2

Air ±8KV Perf. Criteria A

Contact ±6KV Perf. Criteria A

Radiated immunity

EN61000-4-3

10 V/m Perf. Criteria A

Fast transient

EN61000-4-4

± 2KV Perf. Criteria A

Surge

EN61000-4-5

± 1KV Perf. Criteria A

Conducted immunity

EN61000-4-6

10 Vrms Perf. Criteria A

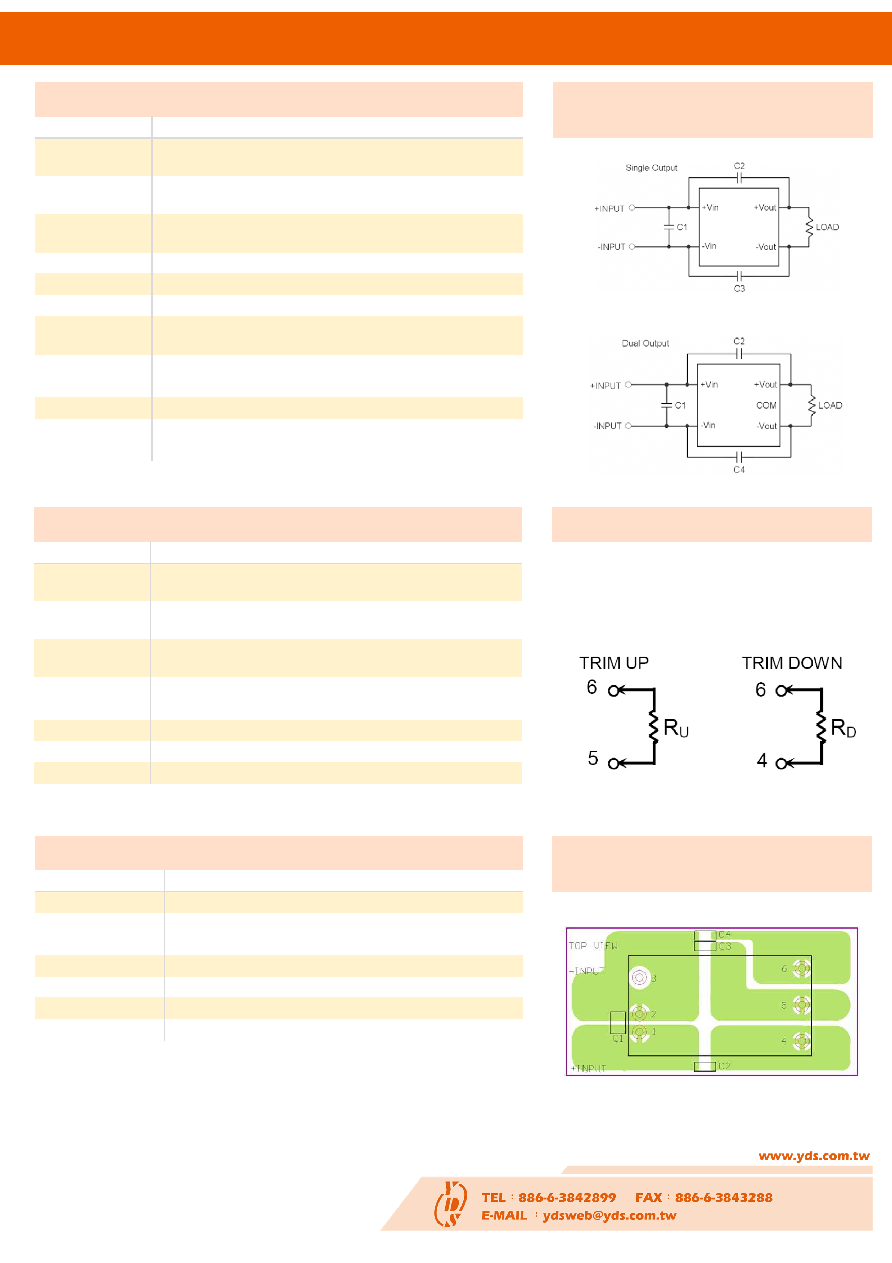

Recommended Filter for

EN55022 Class A Compliance

External Output Trimming

Output can be externally trimmed by using the

method shown below.

Recommended EN55022

Class A Filter Circuit Layout
