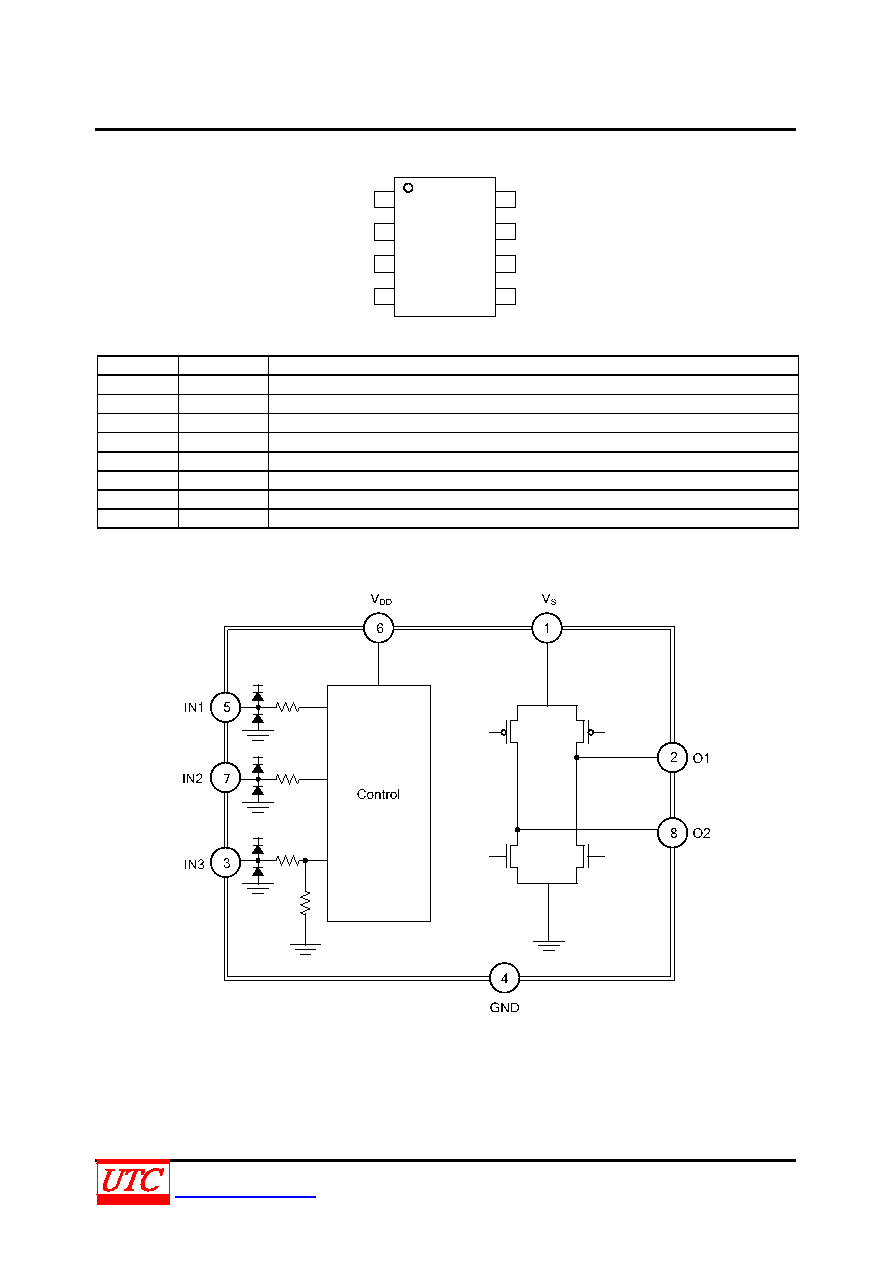

 2 / 4 page
background image
UH251
Preliminary
CMOS IC
UNISONIC TECHNOLOGIES CO., LTD
2 of 4
www.unisonic.com.tw
QW-R109-039.a
PI N CON FI GU RAT I ON
1
2
3
4
8
7
6
5
V
S
OI
IN3
GND
O2
IN2
V
DD
IN1
PI N DESCRI PT I ON
PIN NO.
PIN NAME
DESCRIPTION
1
VS
Power supply pin for output driver
2
O1
Output sinking/driving pin
3
IN3
Input pin 3 that determines driving mode
4
GND
Ground pin
5
IN1
Input pin 1 that determines driving mode
6
VDD
Power supply pin for controller.
7
IN2
Input pin 2 that determines driving mode
8
O2
Output sinking/driving pin
BLOCK DI AGRAM
