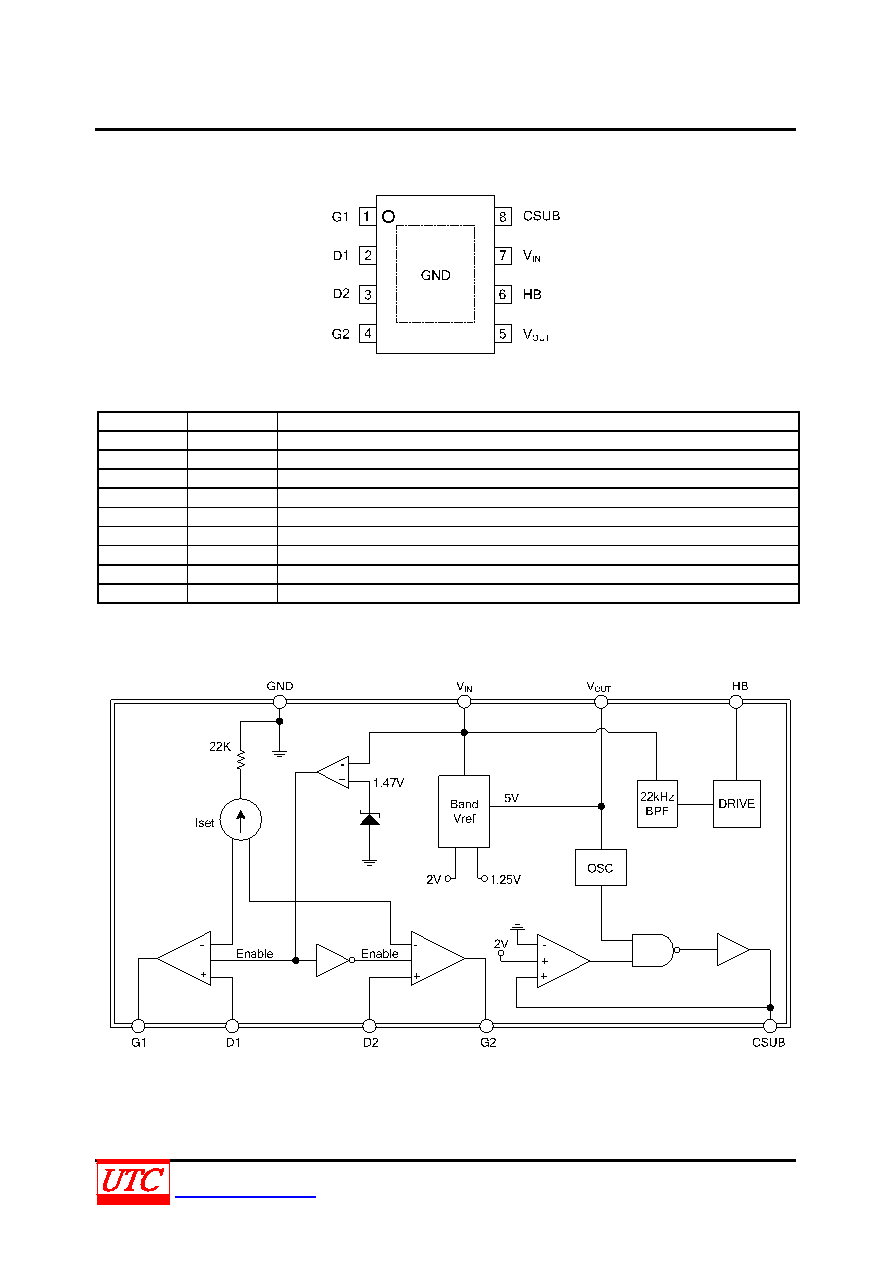

L8221
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
2 of 5
www.unisonic.com.tw
QW-R123-020.B
PI N CON FI GU RAT I ON
PI N DESCRI PT I ON
PIN NO.
PIN NAME
DESCRIPTION
1
G1
To G of fet 1
2
D1
To D of fet 1
3
D2
To D of fet 2
4
G2
To G of fet 2
5
VOUT
5V Output Terminal
6
HB
To HB osc.
7
VIN
Power Supply (Include both voltage and tone signal)
8
CSUB
Connect an external cap to -2.5V
9
GND
Gnd (connect heat sink to ground)
BLOCK DI AGRAM
