Feature Description (continued)

CdVdT = 100 nF

COUT = 1000 µF

RILIM = 4.02 kΩ

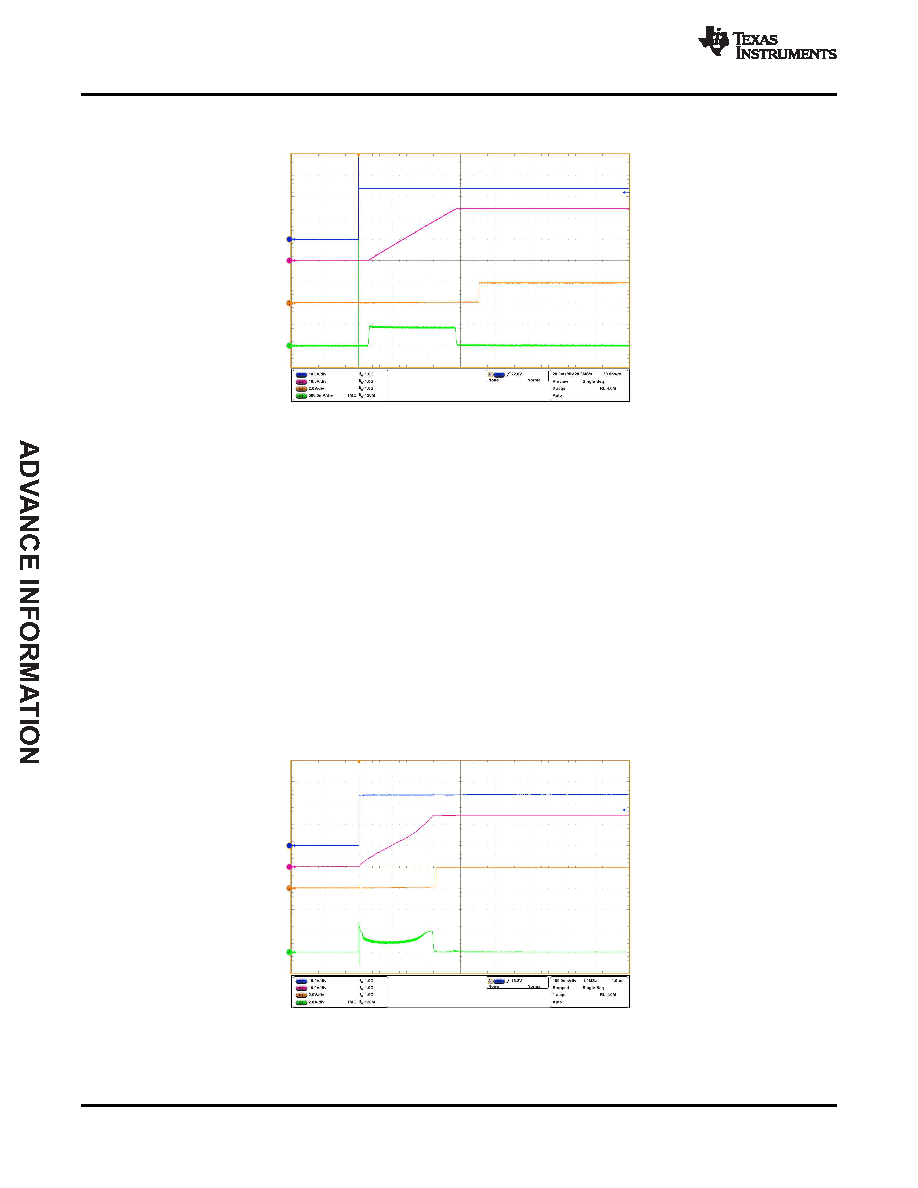

Figure 3. Hot Plug In and Inrush Current Control at 24-V Input

8.3.3.1 Thermal Regulation Loop

The power dissipation during power up can be calculated using Equation 3.

(3)

System designs requiring to charge large output capacitors rapidly or powering up an off board load may result in

a higher PD(INRUSH) within the device causing the junction temperature to rise. Once the junction temperature

rises to T(J_REG) level, the device starts regulating the junction temperature at T(J_REG) by controlling the inrush

current profile through the device for a maximum duration of t(Treg_timeout). If the output does not charge up within

this time then the internal FET is turned OFF. Subsequent operation of the device depends on the MODE

configuration (Auto-Retry or latch OFF). This scheme ensures fast and reliable power up operation. Figure 4

illustrates performance of the device operating in thermal regulation loop during charging of a large output

capacitor.

The Thermal regulation loop gets disabled internally after the power up when the internal FET gets fully

enhanced or when the t(Treg_timeout) time is elapsed.

CdVdT = Open

COUT = 10 mF

RILIM = 4.02 kΩ

Figure 4. Thermal Regulation Loop Response During Power up with Large Capacitive Load
