Data Sheet

ADRF6518

Rev. A | Page 39 of 39

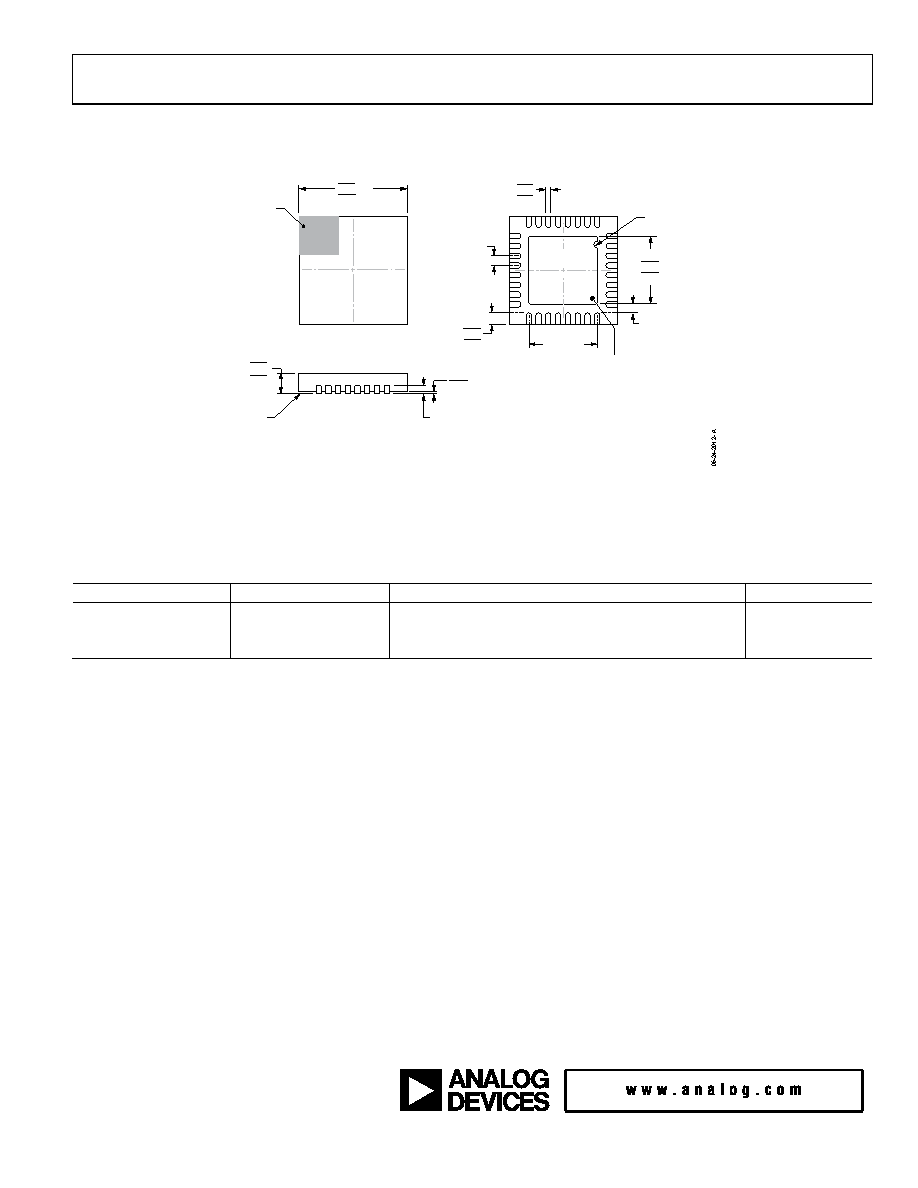

OUTLINE DIMENSIONS

Figure 94. 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

5 mm × 5 mm Body, Very Very Thin Quad

(CP-32-13)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF6518ACPZ-R7

−40°C to +85°C

32-Lead LFCSP_WQ, 7”Tape and Reel

CP-32-13

ADRF6518ACPZ-WP

−40°C to +85°C

32-Lead LFCSP_WQ, Waffle Pack

CP-32-13

ADRF6518-EVALZ

Evaluation Board

Z = RoHS Compliant Part.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

5.10

5.00 SQ

4.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.50

0.40

0.30

0.25 MIN

3.45

3.30 SQ

3.15

COMPLIANT TO JEDEC STANDARDS MO-220-WHHD.

3.50 REF

registered trademarks are the property of their respective owners.

D11449-0-12/17(A)
