ADL5530
Data Sheet
Rev. C | Page 12 of 16
EVALUATION BOARD

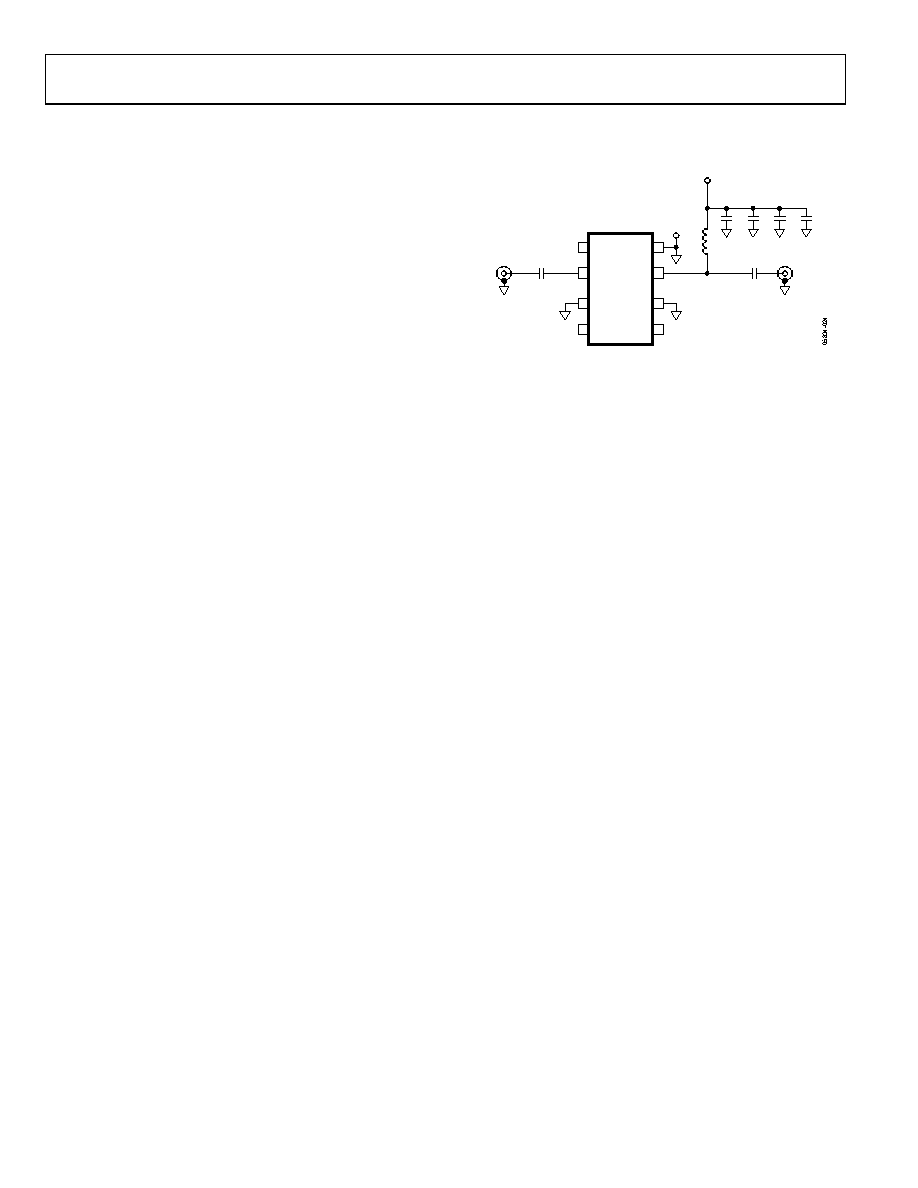

Figure 25 shows the schematic for the ADL5530 evaluation
board. The board is powered by a single supply (between 3 V
and 5 V).
The components used on the board are listed in Table 6. Power
can be applied to the board through clip-on leads (J5, J6),
through an edge connector (P1), or through Jumper W1. Note
that IN2, OUT2, T1, T2, C6, C7 and C10 have no function.
Because Pin 1, Pin 3 and Pin 6 of ADL5530 are No Connects,
these pins are grounded on this PCB (this has no effect on
electrical performance).
J1
IN1
J5
VPOS
1
2
3
4
8
7
6
5
C1
10nF
C2
10nF
C5
10nF
C6
OPEN
C7
OPEN
C10
OPEN
L1
470nH
J2
OUT1
NC = NO CONNECT
J6
GND
ADL5530
NC
IN1
NC
NC
GND
OUT1
NC
NC
Figure 25. Evaluation Board Schematic
