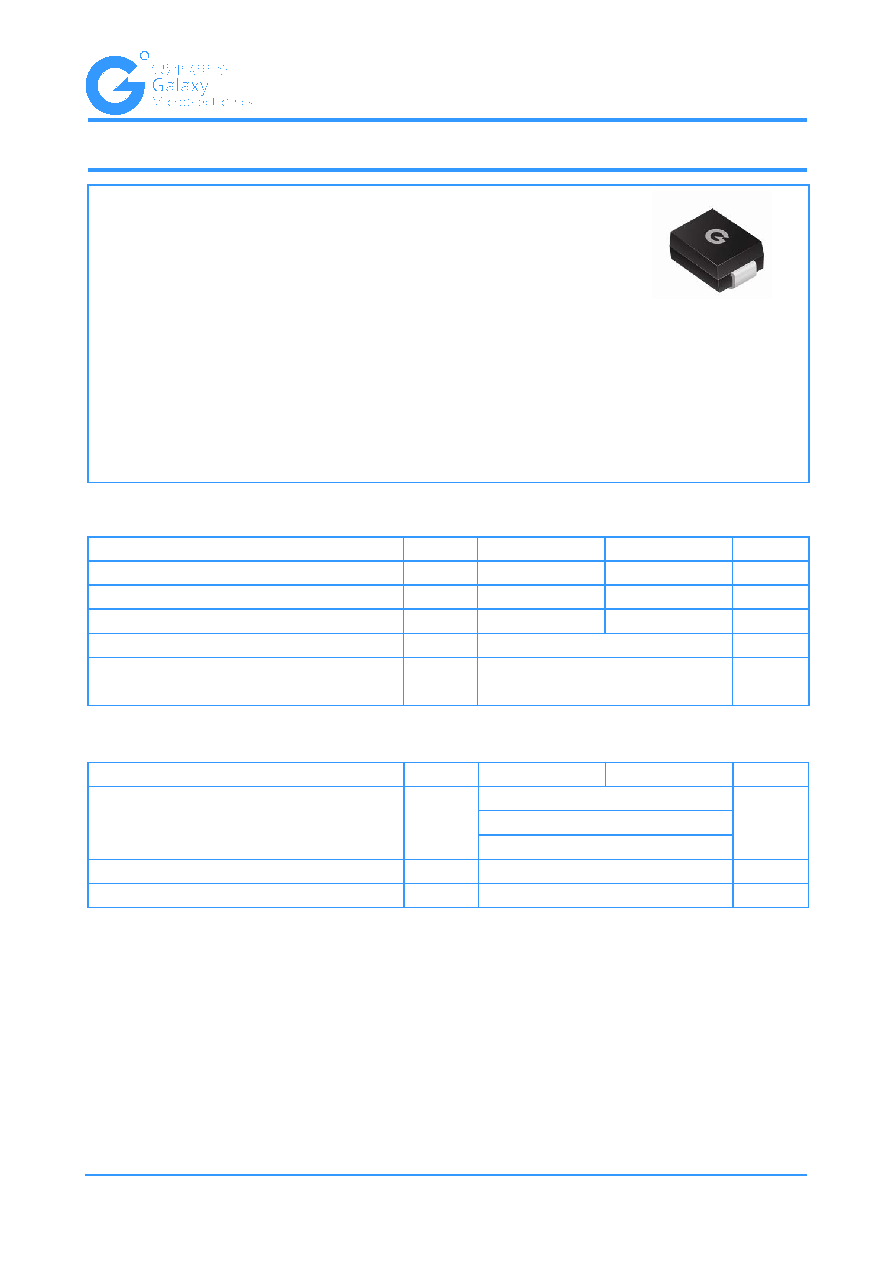

Super-Fast Rectifiers

ES3HB--ES3JB

SMB106AA

www.gmesemi.com

Rev.B

Production specification

Features



For surface mounted applications



Ideal for automated placement



Low forward voltage drop



High surge current capability



RoHS Compliant

Mechanical Data



Case: SMB molded plastic



Molding compound, UL flammability classification rating 94V-0



Terminals: Solder plated, solderable per MIL- STD-202,Method 208



Polarity: Color band denotes cathode end

Maximum Ratings (@TA = 25°C unless otherwise specified)

Characteristic

Symbol

ES3HB

ES3JB

Units

Peak repetitive reverse voltage

VRRM

500

600

V

RMS reverse voltage

VRMS

350

420

V

DC blocking voltage

VDC

500

600

V

Maximum average forward output current

IF(AV)

3.0

A

Peak forward surge current,

8.3ms single half-sine-wave

IFSM

100

A

Thermal Characteristics

Note:

1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas

Parameter

Symbol

ES3HB

ES3JB

Units

Typical thermal resistance

(Note 1)

R ΘJA

R ΘJC

R ΘJL

60

°C /W

23

25

Operating junction temperature range

TJ

- 55 ---- + 150

°C

Storage temperature range

TSTG

- 55 ---- + 150

°C
