Fast Recovery Rectifier
RS3JB
SMB205AA
www.gmesemi.com
Rev.B
Production specification

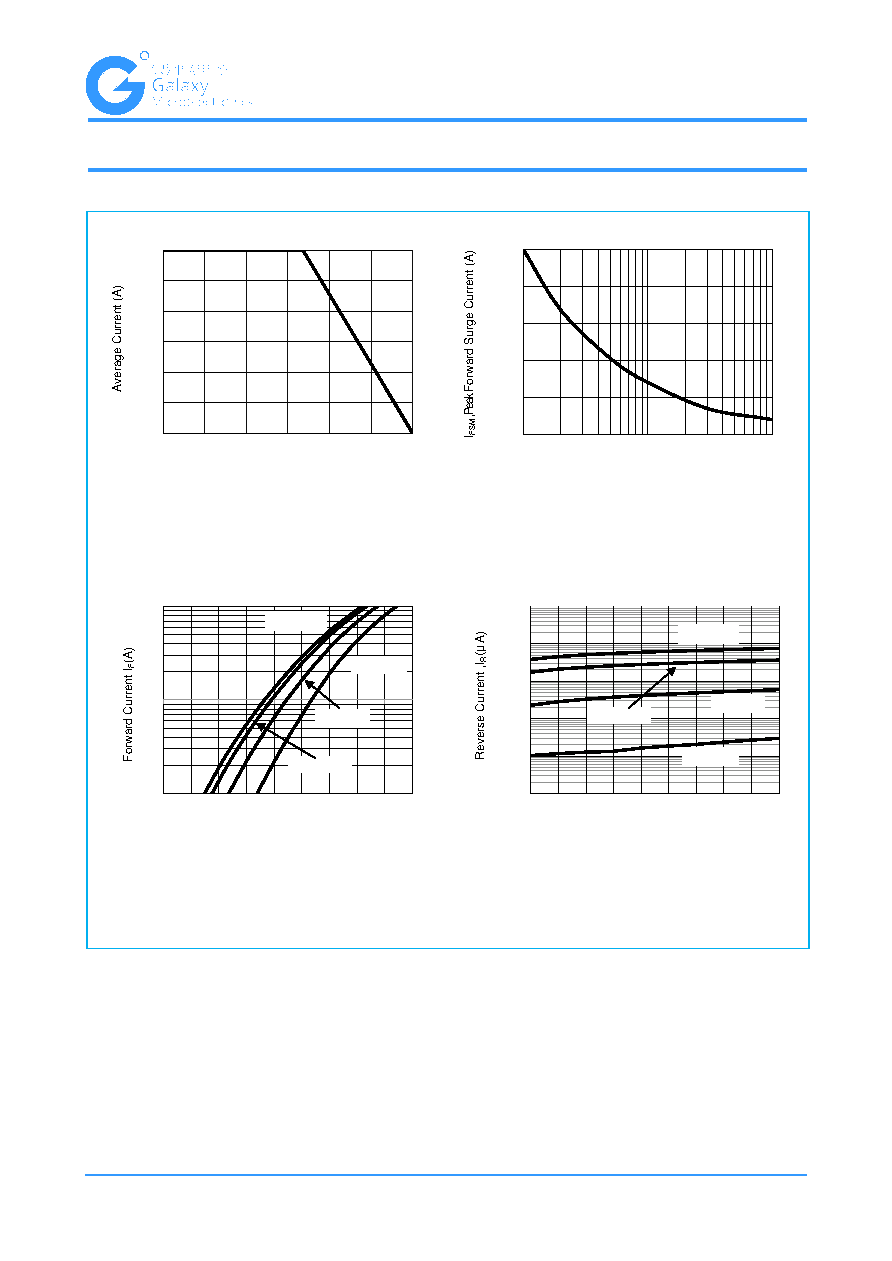

Ratings and Characteristic Curves (TA=25°C unless otherwise noted)
Fig.1-Forward Current Derating Curve
Fig.2- Surge Current Derating Curve
Fig.3- Typical Forward Voltage Characteristic
Fig.4- Typical Reverse Characteristic
