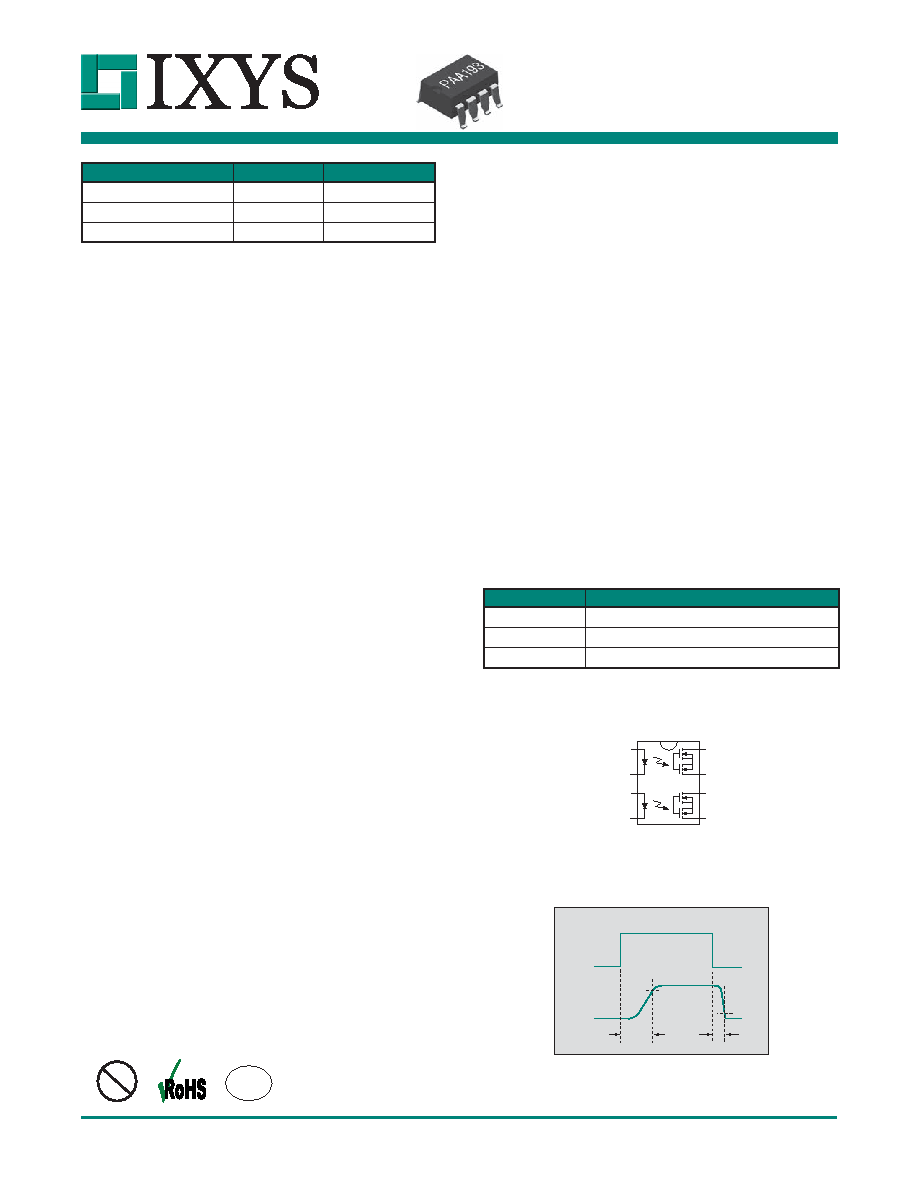

1

PAA193

Dual Single-Pole, Normally Open

Pb

Part #

Description

PAA193

8-Lead DIP (50/tube)

PAA193S

8-Lead Surface Mount (50/tube)

PAA193STR

8-Lead Surface Mount (1000/Reel)

Parameter

Rating

Units

Load Voltage

600

V

P

Load Current

100

mA

On-Resistance (max)

50



Applications

Features

Description

Ordering Information

Pin Configuration

Compatible)

The PAA193 is a dual normally open (1-Form-A) solid

state relay that uses optically coupled relay technology

to provide an enhanced 5000V

isolation barrier. The efficient MOSFET switches use

IXYS IC Division's patented OptoMOS architecture.

Highly efficient GaAIAs infrared LEDs provide the

optically coupled control.

Dual OptoMOS relays provide a more compact design

solution than discrete single-pole relays in a variety

of applications. The dual relays save board space by

incorporating two relays in a single 8-pin package.

Approvals

TUV Certificate B 09 07 49410 004

Switching Characteristics

of Normally Open Devices

Form-A

I

F

I

LOAD

10%

90%

t

on

t

off

1

2

3

4

8

7

6

5

+ Control - Switch #1

- Control - Switch #1

+ Control - Switch #2

- Control - Switch #2

Load - Switch #1

Load - Switch #1

Load - Switch #2

Load - Switch #2
