Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 735 of 1468
REJ09B0412-0200
(b)
Example of input capture operation

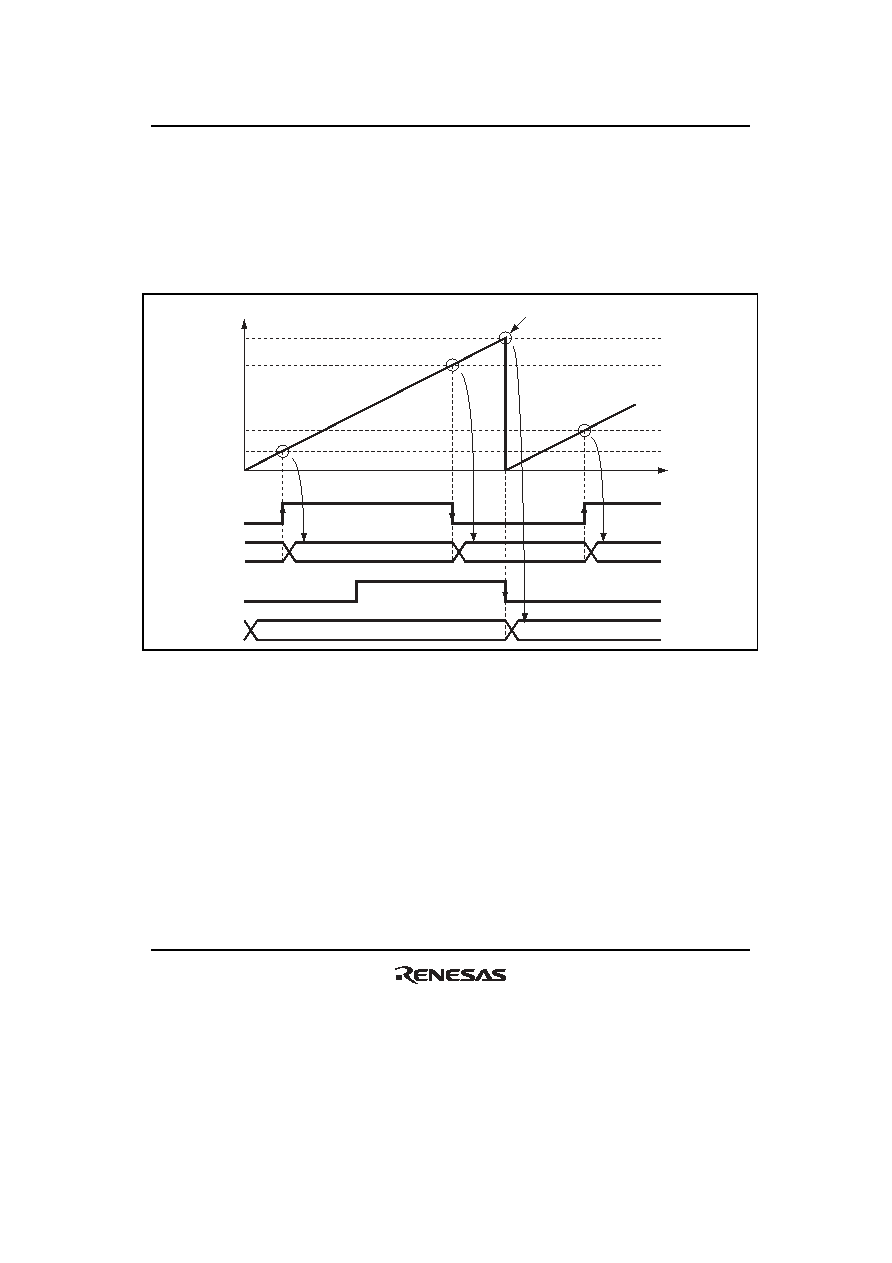

Figure 14.10 shows an example of input capture operation.
In this example, both rising and falling edges have been selected as the TIOCA pin input capture
input edge, falling edge has been selected as the TIOCB pin input capture input edge, and counter
clearing by TGRB input capture has been designated for TCNT.
TCNT value
H'0180
H'0000
TIOCA
TGRA
Time
H'0010
H'0005
Counter cleared by TIOCB
input (falling edge)
H'0160
H'0005
H'0160
H'0010
TGRB
H'0180
TIOCB
Figure 14.10 Example of Input Capture Operation
