KSZ9563R
DS00002419D-page 204
 2017-2018 Microchip Technology Inc.
6.4.3
RMII TIMING

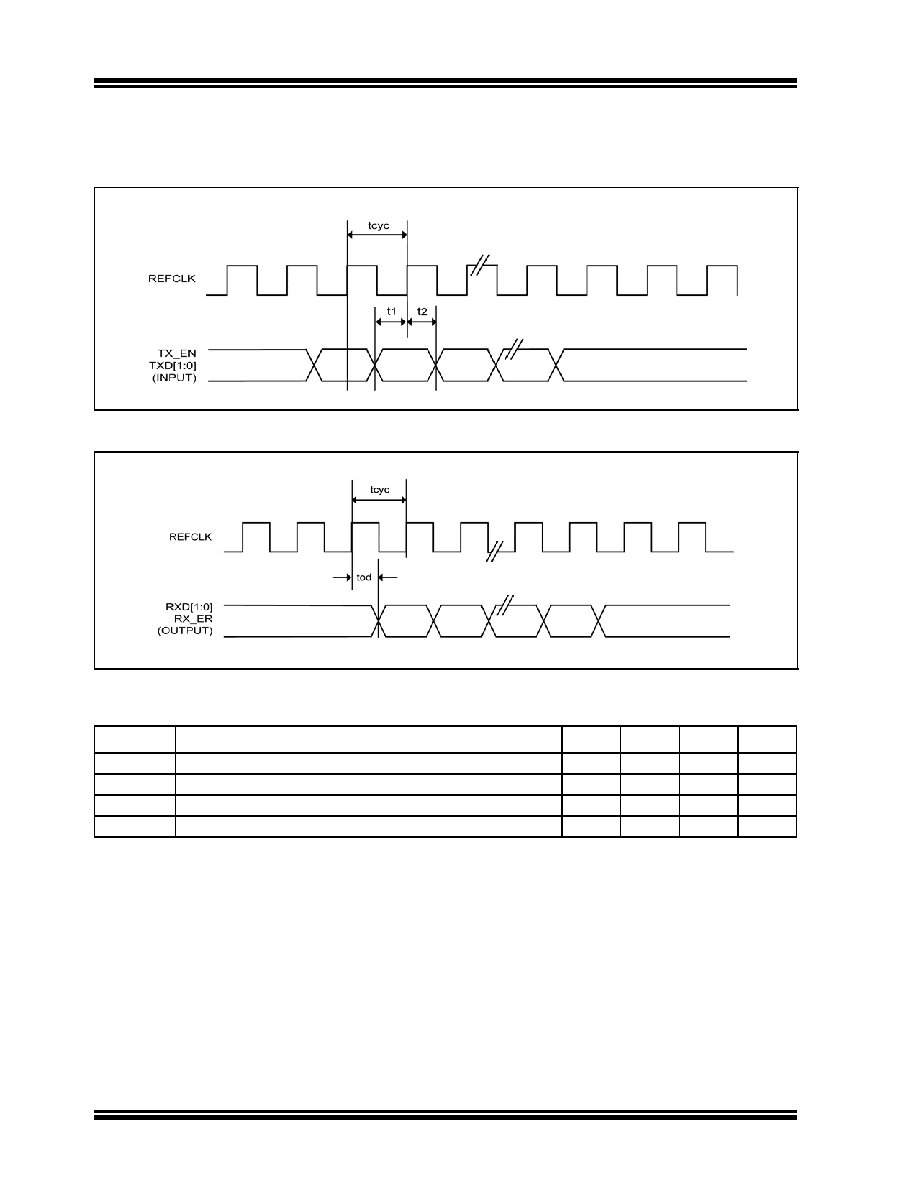

Figure 6-6 and Figure 6-7 illustrate the RMII timing requirements.
FIGURE 6-6:
RMII TRANSMIT TIMING
FIGURE 6-7:
RMII RECEIVE TIMING
TABLE 6-7:
RMII TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tcyc
Clock cycle
20
ns
t1
Setup time
4
ns
t2
Hold time
2
ns
tod
Output delay
7
9
13
ns
